Custom Interface and Harness

Customization support for output flange, mounting pattern, hollow-shaft routing, connector position, cable length, and harness details after a catalog model is selected.

Best Fit For:For teams that have chosen a standard actuator family but need it to fit a specific robot joint shell and wiring architecture.

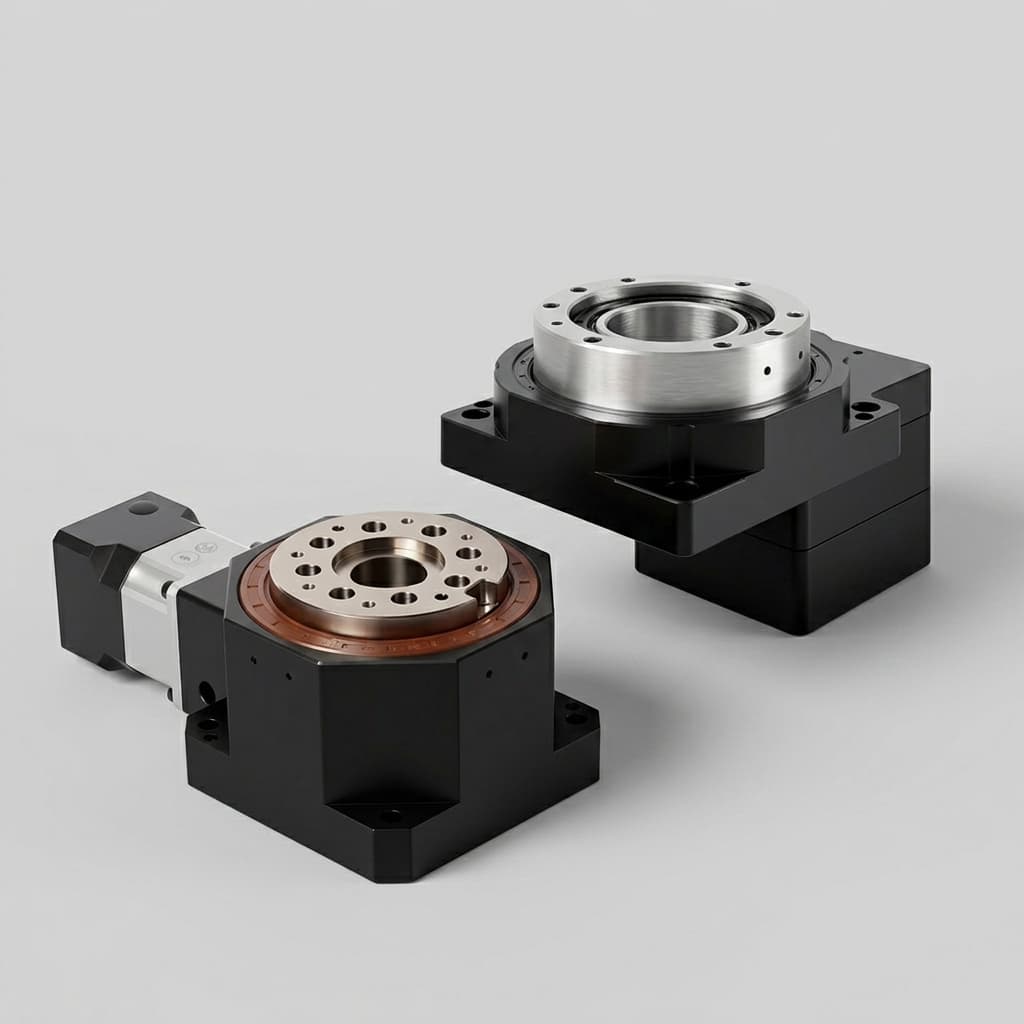

Hollow-shaft actuator interface and cable-through reference

Capability Highlights

Mechanical and electrical interface adaptation after baseline model approval
Cable routing and connector review for compact humanoid joint packaging
Revision-controlled drawings and sample acceptance notes

Typical Engagement Scope

Custom humanoid actuator mounting
Cable-through joint integration
Prototype-to-pilot harness standardization

Execution Focus

Output flange, bolt circle, pilot diameter, datum, and bearing interface
Cable exit angle, connector type, harness length, shielding, and strain relief
Change control from initial sample to repeat pilot orders

Program Evaluation Matrix

Program Metric	Typical Range	Procurement Value
Interface closure	Drawing and DFM dependent	A mechanically strong actuator still fails the project if flange, connector, or cable routing is wrong.

RFQ Preparation Checklist

Baseline actuator model or model family
2D drawing, 3D STEP file, and revision ID for the joint interface
Harness drawing, connector preference, and cable routing constraints
Prototype and pilot quantity by revision

Risk and Mitigation

Custom changes are requested before baseline model validation: Validate standard model fit first unless the existing package cannot be mounted at all.

Related Products

Dual encoder joint actuator with compact harness integration

Buyer FAQ

Can you customize the flange or cable exit?

Often yes, but it depends on the selected baseline model and the scale of the requested change. Send CAD and harness constraints early.
